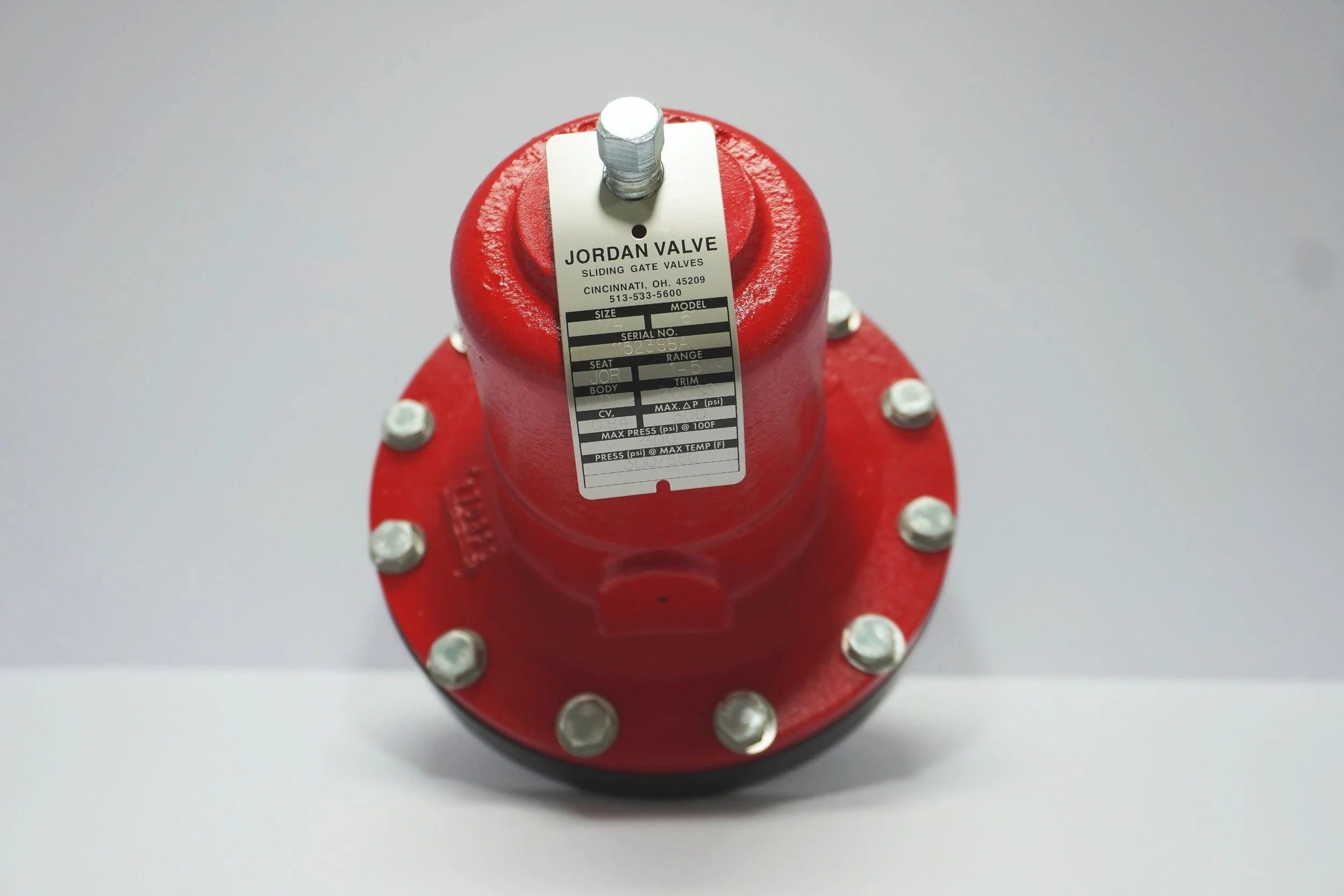

MK 61 Series Jordan Valve - IN STOCK

$1,479.41 $1,644.00

P/N: 61-025-DI/PTS3V305S6MD

The Mark 61 Series handles a broad range of applications including steam, water, oil, gas, air and chemicals. It is a self-operating pressure regulator used to regulate the downstream pressure to a predetermined setpoint. The sliding gate seats offer excellent control and extreme longevity in a compact, lightweight design. It features a larger diaphragm to provide greater sensitivity.

Specs. for 61-025DI/PTS3V3-05-S6-MD below

P/N: 61-025-DI/PTS3V305S6MD

The Mark 61 Series handles a broad range of applications including steam, water, oil, gas, air and chemicals. It is a self-operating pressure regulator used to regulate the downstream pressure to a predetermined setpoint. The sliding gate seats offer excellent control and extreme longevity in a compact, lightweight design. It features a larger diaphragm to provide greater sensitivity.

Specs. for 61-025DI/PTS3V3-05-S6-MD below

Mark 61 Series

MODEL: Large Diaphragm

SIZE: ¼ inch NPT,

BODY MATERIAL: Ductile Iron

RANGE: 1-5 psi

END CONNECTIONS: ¼” – 2” NPT

TRIM: 303SS

SEAT MTL: 303SS/Jorcote

CV: .84

MK61 Spring Range PSI (Bar): 1-5 (0,07 – 0,34)

DIAPHRAGM: 316SST

ACTUATOR: DI for Metal Diaphragm

*Max press PSI @ 100F= 300psi

*Max press PSI @ Max temperature = 300/550psi
